Pipe Fittings & Flanges
Plate Flanges
Plate flanges for EN and PN metric pipework, supplied against confirmed project specification.
AvailabilityProject based

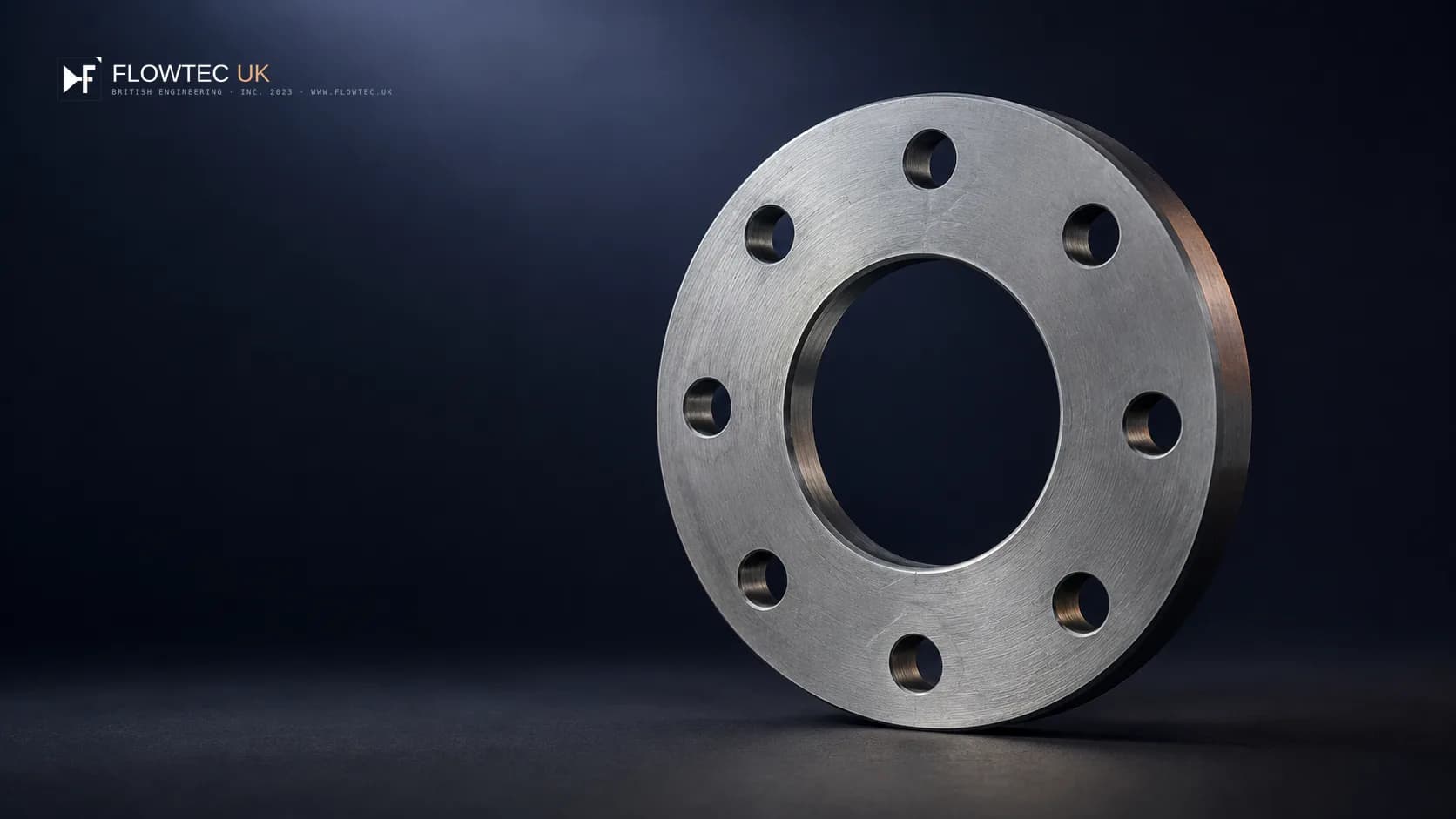

Representative product visual. Final configuration varies by project.
Overview
Plate flanges are flat, plate-form flanges to EN 1092-1 Type 01, used on PN-rated metric pipework. They are a common, economical choice for European water, utility and building-services systems. FLOWTEC (UK) supplies plate flanges configured to order scope, with the final specification confirmed at quotation stage.
At a glance
Flat plate flanges to EN 1092-1 Type 01 for PN-rated metric pipework in water, HVAC and building services. Specification confirmed against your project requirements.
- Economical flat, plate-form flange for EN/PN metric systems
- Kept in EN/PN terms — not mapped to ASME terminology
- Referenced to the EN 1092-1 Type 01 design basis
- Materials and documentation confirmed at quotation stage
Typical applications
- Water utility pipework
- Building services
- EN / PN metric industrial pipework
Typical use & selection context
Typically applied on lower-pressure metric water, HVAC and building-services pipework where an EN/PN plate flange suits the system standard. Selection considers PN rating, nominal size and facing, each confirmed against the line specification.
Operating envelope
Indicative operating range
Values are confirmed against your project specification. Detailed figures are issued on request after engineering review, in model-specific documentation at quotation.
- Pressure class
- EN 1092-1 PN 10 / PN 16 · regional tables per project
- Size range
- DN range per governing standard
Standards & facing context
Referenced against EN 1092-1 Type 01. Indicative envelope: PN 10 / PN 16 pressure classes on EN-metric pipework. This page is deliberately kept in EN/PN terms and is not mapped to ASME slip-on-raised-face terminology. Standards references are a design basis only, not a statement of certification.
Standards referenced
References below indicate the standards a configuration can be worked to. They are not a statement of certification — scope is confirmed per project.
- EN 1092-1 Type 01 — Dimensional reference
- SANS 1123 — Project-specified reference
- BS 10 — Legacy reference
Materials & documentation
Carbon and stainless grades configured to order scope. Material and test documentation is confirmed against the purchase-order requirement; dimensional data is available on request.
Documentation
Information to include in an enquiry
- EN standard and PN class
- Nominal size (DN)
- Facing
- Material grade
- Quantity
- Documentation required
- Application and operating conditions
Related
Configure plate flanges for your duty
Every enquiry is reviewed by our engineering team. Tell us your duty, fluid and standards and we will respond with a proposed configuration.
