Blind Flanges

Overview

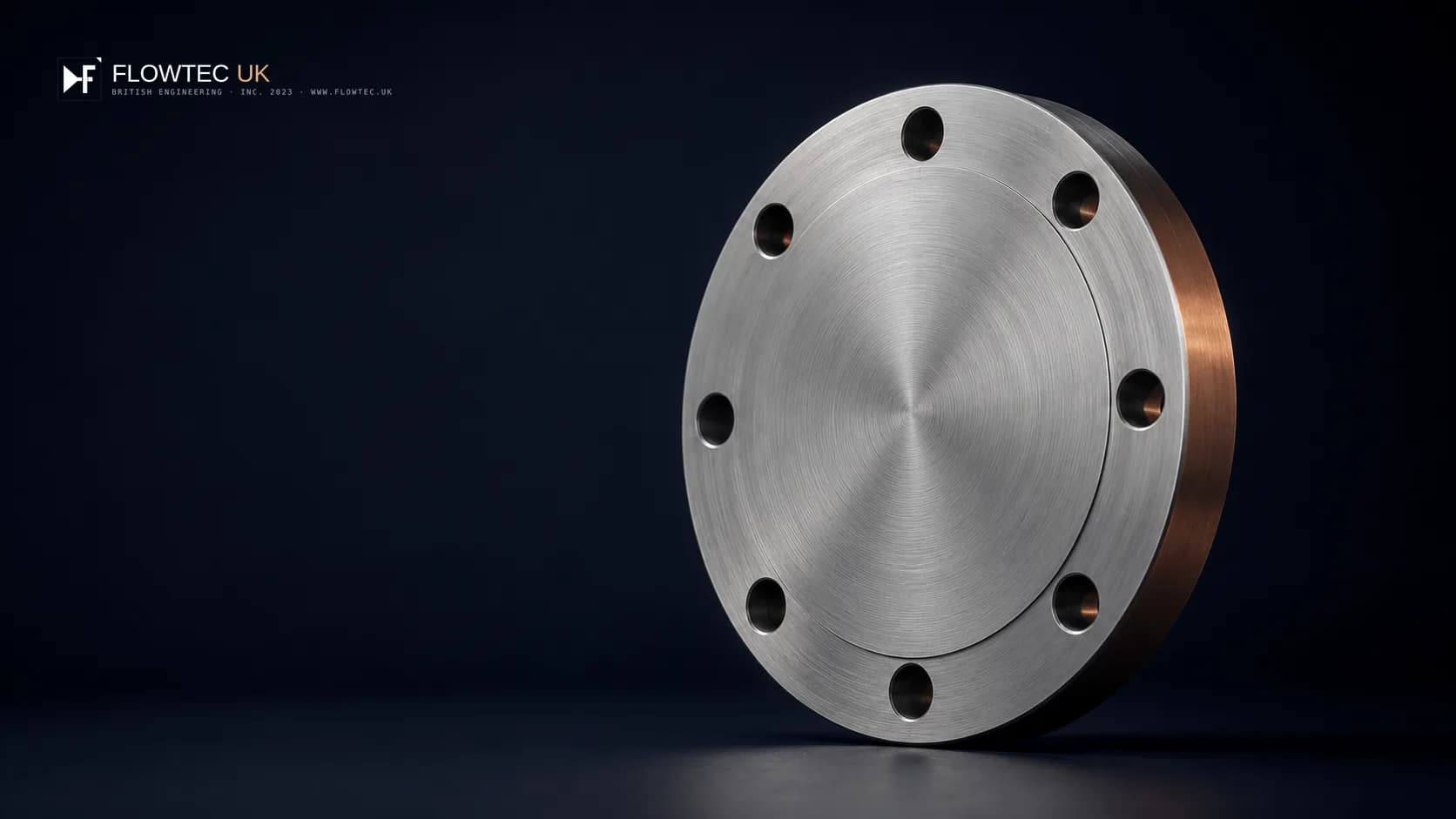

Blind flanges are solid closures used to seal the end of a pipe run, close a vessel or equipment opening, or cap a future connection point. Because they can be removed, they also provide inspection and maintenance access. FLOWTEC (UK) supplies blind flanges configured to order scope, with the final specification confirmed at quotation stage.

At a glance

Blind flanges close a pipe run, a vessel or equipment opening, or a future connection point, and can be removed for inspection access. Specification confirmed against your project requirements.

• Solid closure for line ends, isolation points and spare nozzles
• Removable — also provides inspection and maintenance access
• Referenced to ASME and EN design bases; raised-face standard, ring-type-joint available on higher-class configurations
• Materials and documentation confirmed at quotation stage

Typical applications

• Line terminations
• Vessel and equipment openings
• Future tie-in points

Typical use & selection context

Used at line ends, isolation points, spare nozzles and planned tie-ins across process, utility and infrastructure systems. Selection is driven by design pressure and temperature, facing and gasket strategy, and the governing standard, each confirmed against the line specification.

Pressure class

ASME Class 150 - 2500 · EN 1092-1 PN 6 - 40 · ASME B16.47 Class 75 - 900

Size range

½″ - 24″ (DN 15 - 600) · 26″ - 60″ to ASME B16.47

Standards & facing context

Referenced against ASME B16.5 / B16.47 and EN 1092-1 Type 05 equivalents, with SANS and other national tables where a project calls for them. Indicative envelope covers common ASME classes and EN PN ratings. Raised-face is standard; ring-type-joint facing is available on relevant higher-class configurations. Standards references are a design basis only, not a statement of certification.

Standards referenced

References below indicate the standards a configuration can be worked to. They are not a statement of certification — scope is confirmed per project.

• ASME B16.5 — Dimensional reference
• ASME B16.47 Series A & B — Large-diameter dimensional reference
• EN 1092-1 Type 05 — Dimensional reference
• SANS 1123 — Project-specified reference

Materials & documentation

Carbon and stainless grades configured to order scope. Material and test documentation is confirmed against the purchase-order requirement; dimensional data is available on request.

Documentation

Information to include in an enquiry

• Standard and class/PN
• Nominal size
• Facing
• Material grade
• Quantity
• Documentation required
• Application and operating conditions
